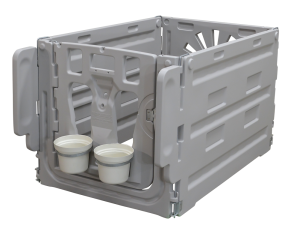

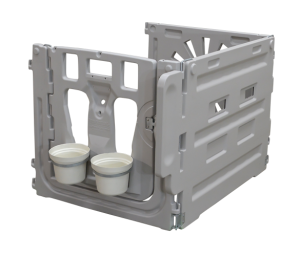

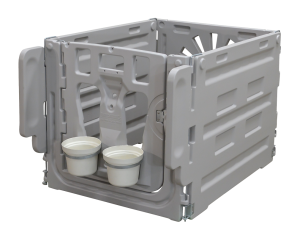

Ultra Flex-Pens

Available in 3 options

For up to 12 week old calves.
Keep your calves healthy and happy with the next generation of the Flex-Pen!  The center panel can be removed for ULTRA versatility for either single or group calf housing.
These pens are also modular for ULTRA flexibility. Add on single pens for individual calf housing, or combine it with group pens  – all in the same row.
Separate water and feed buckets and bottles, as well as molded calf dividers, help prevent cross-contamination. And the lighter weight construction is easy to keep clean and even easier to move!
This new lighter weight indoor pen has a detachable center panel so calves can be grouped together or housed individually for health or welfare reasons. It also has multiple “flexible” setup configurations and can be extended to any length the customer wishes.
To view the sell sheet click here. *Patent Pending. Our pens are loaded with features:
  • Ultra lightweight for easy setup and cleaning without jeopardizing durability
  • Single Front and Rear Panels
  • Self-aligning panels use EZ-Glide Connection Tabs and Hinges for easy and quick setup
  • Ultra bio-secure
  • Ultra rear rotary venting has no steel wire to rust, fully-adjustable air flow control, and no separate parts to lose or store
  • Integrated sliding side panel vents for additional air control and meets European regulations
  • Individual penning used to maximize pens per room size
  • Individual pens interlock together for a clean line of calf spaces
  • Center panels can be removed to create a group penning option for as many calves as desired
  • Ultra tough, non-metal door frame made with a structural compression molding process
  • Ultra Flex-Pen panels available in a 5′, 6′, and 7′ lengths to fit any size barn operation and allows for optimum calf space
  • Modular Freestanding penning means no post or install to floor (keep adding to it; no fasteners to install on floor)

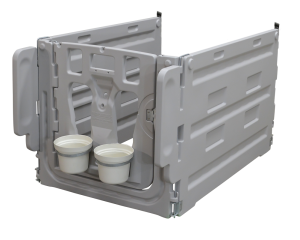

  • Units can also be wall mounted using our optional wall mounting bracket
  • Bottle or Pail Milk Feeding Options dove-tailed with water and grain feed spaces
  • 10-year Warranty – One of the best warranties in the business

Individual Part Weights:
blank
blank5′ Panel AGRI-7105FS
Outside Dimensions: 72″ L  x 45″ H x 48″ W /
183 cm L  x 114 cm H x 122 cm
Total Weight: 104.8 lbs. / 47.5 kg

blank6′ Panel AGRI-7106FS
Outside Dimensions: 84″ L  x 45″ H x 48″ W /
213 cm L  x 114 cm H x 122 cm
Total Weight: 116 lbs. / 52.6 kg

blank7′ Panel AGRI-7107FS
Outside Dimensions: 96″ L x  x 45″ H x 48″ W /
244 cm L  x 114 cm H x 122 cm
Total Weight: 130.8 lbs. / 59.3 kg
blank5′ Panel AGRI-7105FA
Outside Dimensions: 72″ L  x 45″ H x 48″ W /
183 cm L  x 114 cm H x 122 cm
Total Weight: 76.8 lbs. / 34.8 kg



blank6′ Panel AGRI-7106FA
Outside Dimensions: 84″ L  x 45″ H x 48″ W /
213 cm L  x 114 cm H x 122 cm
Total Weight: 82.4 lbs. / 37.4 kg
blank7′ Panel AGRI-7107FA
Outside Dimensions: 96″ L x  x 45″ H x 48″ W /
244 cm L  x 114 cm H x 122 cm
Total Weight: 89.8 lbs. / 40.7 kg
blankStarter Kit: 5′ Panel AGRI-7105WS
Outside Dimensions: 72″ L  x 45″ H x 48″ W /
183 cm L  x 114 cm H x 122 cm
Total Weight: 85.4 lbs. / 38.7 kg

blankStarter Kit: 6′ Panel AGRI-7106WS
Outside Dimensions: 84″ L  x 45″ H x 48″ W /
213 cm L  x 114 cm H x 122 cm
Total Weight: 96.6 lbs. / 43.8 kg

blank
Starter Kit: 7′ Panel AGRI-7107WS
Outside Dimensions: 96″ L x  x 45″ H x 48″ W /
244 cm L  x 114 cm H x 122 cm
Total Weight: 111.4 lbs. / 50.5 kg
blankModular Kit: 5′ Panel AGRI-7105WA
Outside Dimensions: 72″ L  x 45″ H x 48″ W /
183 cm L  x 114 cm H x 122 cm
Total Weight:  57.4 lbs. / 26 kg

blankModular Kit: 6′ Panel AGRI-7106WA
Outside Dimensions: 84″ L  x 45″ H x 48″ W /
213 cm L  x 114 cm H x 122 cm
Total Weight: 63 lbs. / 28.6 kg





blankModular Kit: 7′ Panel AGRI-7107WA
Outside Dimensions: 96″ L x  x 45″ H x 48″ W /
244 cm L  x 114 cm H x 122 cm
Total Weight: 70.4 lbs. /31.9 kg

Standard Features:

7016_6'UltraFlexPen.BackAccess.LR
Back Panel opens for easy cleaning and access.

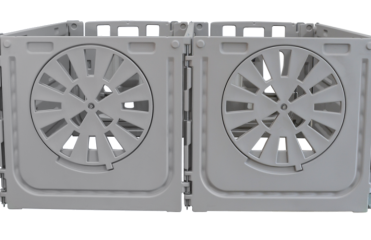

6'DoubleUltraFlexPenBackView
Rear Venting for maximum airflow.
6'UltraFlexPenHandle
Secure, easy grip locking handle.
8'UltraFlexPenPullingPanel
EZ Glide Panels make it easy to convert single pens into group pens.
7016_6'UltraFlexPen.BiSwingDoor
Bi-Swing Front Doors for exit/entrance flexibility.
