NEW! Open Air Flex-Pens
Available in 4 options, 3 Lengths, & 2 Widths!
For up to 12 week old calves.

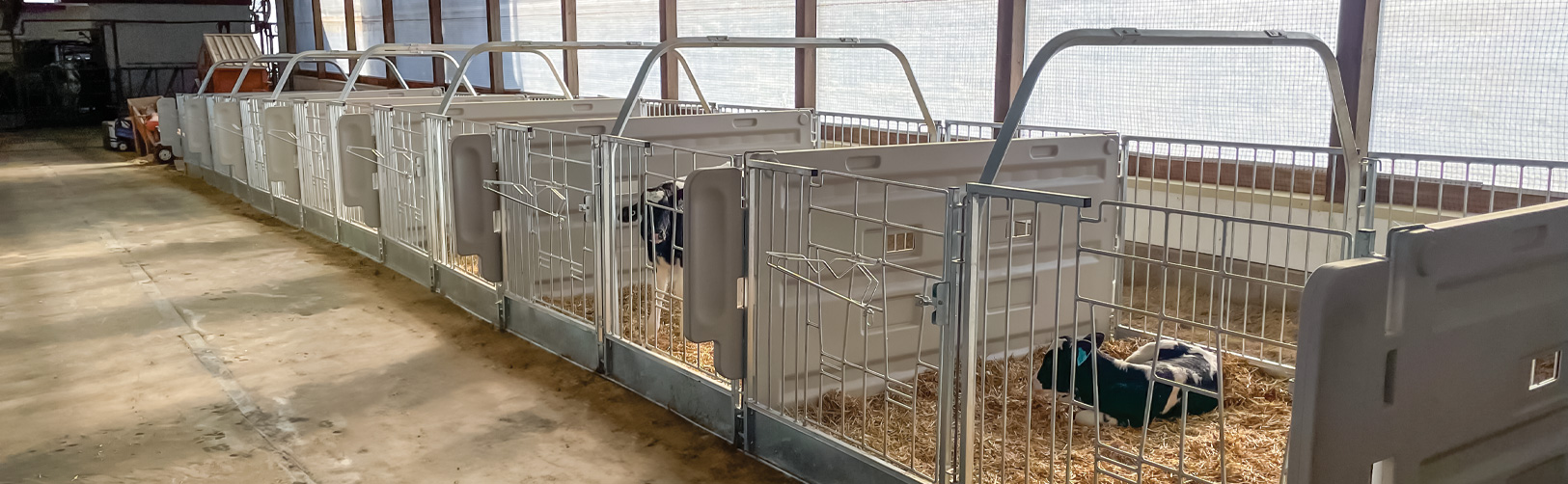

Introducing the Open Air Flex-Pen System – it offers all the great benefits of the Ultra Flex-Pen, now with front and rear metal panels! High-grade galvanized steel panels facilitate excellent air circulation while providing convenient visual access to monitor your calves. Like its Ultra Flex-Pen counterpart, this system effortlessly transitions from single to group housing, simply by detaching the side panels. Integrated Sliding Side Vents complies with specific regional regulations. These innovative solutions allow for versatility with single, paired or group housing. Use the Ultra Flex-Pen Group Housing bar to connect multiple pens.
This new lighter weight indoor pen has a detachable center panel so calves can be grouped together or housed individually for health or welfare reasons. It also has multiple “flexible” setup configurations and can be extended to any length the customer wishes.
*Pen dimensions may vary slightly. For precise measurements required for installation, please contact your Sales Representative or call us at 1-888-231-3575.
Features:
- Ultra lightweight for easy setup and cleaning without jeopardizing durability
- Single Front and Rear Panels
- Self-aligning panels use EZ-Glide Connection Tabs and Rods for easy and quick setup
- Easy access to the rear panel – simply lift up the EZ-Glide rod and open rear panel
- Integrated Sliding Side Vents to comply with specific regional regulations
- Individual penning used to maximize pens per room size
- Individual pens interlock together for a clean line of calf spaces
- Center panels can be removed to create a group penning option for as many calves as desired
- High-grade galvanized steel Front Panel with Pails, Pail rings and an area for Bottle Feeding
- Plastics Side panels available in a 5′, 6′, and 7′ lengths to fit any size barn operation and allows for optimum calf space
- Front and Rear Panels available in 36″ or 48″ widths
- Modular Freestanding penning means no post or install to floor (keep adding to it; no fasteners to install on floor)
- Units can also be wall mounted using our optional wall mounting bracket
- Bi-Swing Front Door
- Slam Latch keeps Front Gate secure
- Ultra biosecure
Individual Part Weights:
- 5' Side Panel: 28 lbs.
- 6' Ft Side Panel: 33.6 lbs.
- 7' Ft Side Panel: 41 lbs.
- 36" Front Panel: 39 lbs.
- 36" Rear Panel: 31 lbs.
- 48" Front Panel: 47 lbs.
- 48" Rear Panel: 40 lbs.
- Wall Bracket: 6 lbs.
Open Air Freestanding Starter Kit
Open Air Freestanding Add-On Kit
Open Air Wall Mount Starter Kit
Open Air Wall Mount Add-On Kit

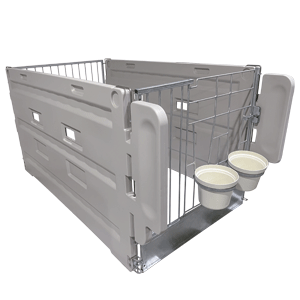

Open Air Freestanding Starter Kit
.
Available in 5′, 6′, and 7′ depths and 36″ or 48″ widths.
Comes with 1 front galvanized steel door, 2 side walls, 1 rear galvanized steel panel, 2 buckets, and 2 pail rings.
Bottle Options: Choose Wire Bottle Holder and Bottle, Teat Bucket, or Milk Bar Teat Bucket.

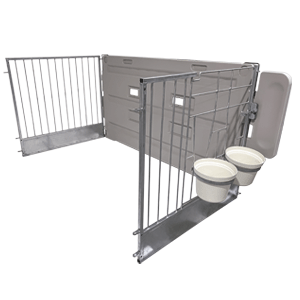

Open Air Freestanding Add-On Kit
Customize your pen count with these add-on units.
Available in 5′, 6′, and 7′ depths and 36″ or 48″ widths.
Comes with 1 front galvanized steel door, 2 side walls, 1 rear galvanized steel panel, 2 buckets, and 2 pail rings.
Bottle Options: Choose Wire Bottle Holder and Bottle, Teat Bucket, or Milk Bar Teat Bucket.

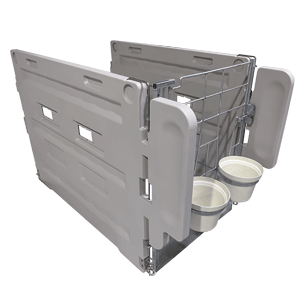

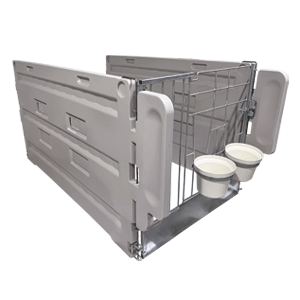

Open Air Wall Mount Starter Kit
Rear of pen mounts directly to barn wall.
Available in 5′, 6′, and 7′ depths and 36″ or 48″ widths.
Comes with 1 front galvanized steel door, 2 side walls, 1 rear galvanized steel panel, 2 buckets, and 2 pail rings.
Bottle Options: Choose Wire Bottle Holder and Bottle, Teat Bucket, or Milk Bar Teat Bucket.

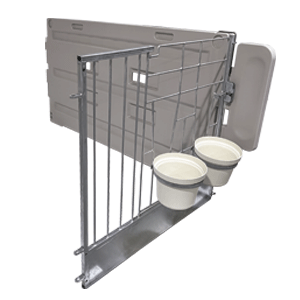

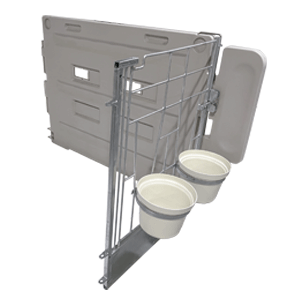

Open Air Wall Mount Add-On Kit
Customize your pen count with these add-on units.
Rear of pen mounts directly to barn wall.
Available in 5′, 6′, and 7′ depths and 36″ or 48″ widths.
Comes with 1 front galvanized steel door, 2 side walls, 1 rear galvanized steel panel, 2 buckets, and 2 pail rings.
Bottle Options: Choose Wire Bottle Holder and Bottle, Teat Bucket, or Milk Bar Teat Bucket.
5′ Pen AGRI-7135S
Outside Dimensions: 72″ L x 36″ W x 45″ H /
183 cm L x 91 cm W x 114 cm H
Inside Dimensions: 58″ L x 34″ W x 45″ H /
147 cm L x 86 cm W x 114 cm H
Total Weight 134 lbs. / 61 kg.
6′ Pen AGRI-7136S
Outside Dimensions: 84″ L x 36″ W x 45″ H /
213 cm L x 91 cm W x 114 H
Inside Dimensions: 70″ L x 34″ W x 45″ H /
178 cm L x 91 cm W x 114 cm H
Total Weight 148 lbs. / 67 kg.
7′ Pen AGRI-7137S
Outside Dimensions: 96″ L x 36″ W x 45″ H /
244 cm L x 91 cm W x 114 cm H
Inside Dimensions: 82″ L x 34″ W x 45″ H
208 cm L x 91 cm W x 114 cm H
Total Weight 156 lbs. / 71 kg.:
5′ Pen AGRI-7135A
Outside Dimensions: 72″ L x 36″ W x 45″ H /
183 cm L x 91 cm W x 114 cm H
Inside Dimensions: 58″ L x 34″ W x 45″ H /
147 cm L x 91 cm W x 114 cm H
Total Weight 102 lbs. / 46 kg.
6′ Pen AGRI-7136A
Outside Dimensions: 84″ L x 36″ W x 45″ H /
213 cm L x 91 cm W x 114 cm H
Inside Dimensions: 70″ L x 34″ W x 45″ H /
178 cm L x 91 cm W x 114 cm H
Total Weight 109 lbs. / 50 kg.
7′ Pen AGRI-7137A
Outside Dimensions: 96″ L x 36″ W x 45″ H /
244 cm L x 91 cm W x 114 cm H
Inside Dimensions: 82″ L x 34″ W x 45″ H /
208 cm L x 91 cm W x 114 cm H
Total Weight 113 lbs. / 52 kg.
5′ Pen AGRI-7135WS
Outside Dimensions: 72″ L x 36″ W x 45″ H /
183 cm L x 91 cm W x 114 cm H
Inside Dimensions: 58″ L x 34″ W x 45″ H /
147 cm L x 91 cm W x 114 cm H
Total Weight 71 lbs. / 32 kg.
6′ Pen AGRI-7136WS
Outside Dimensions: 84″ L x 36″ W x 45″ H /
213 cm L x 91 cm W x 114 cm H
Inside Dimensions: 70″ L x 34″ W x 45″ H /
178 cm L x 91 cm W x 114 cm H
Total Weight 78 lbs. / 35 kg.
7′ Pen AGRI-7137WS
Outside Dimensions: 96″ L x 36″ W x 45″ H /
244 cm L x 91 cm W x 114 cm H
Inside Dimensions: 82″ L x 34″ W x 45″ H /
208 cm L x 91 cm W x 114 cm H
Total Weight 82 lbs. / 37 kg.
5′ Pen AGRI-7135WA
Outside Dimensions: 72″ L x 36″ W x 45″ H /
183 cm L x 91 cm W x 114 cm H
Inside Dimensions: 58″ L x 34″ W x 45″ H /
147 cm L x 91 cm W x 114 cm H
Total Weight 71 lbs. / 32 kg.
6′ Pen AGRI-7136WA
Outside Dimensions: 84″ L x 36″ W x 45″ H /
213 cm L x 91 cm W x 114 cm H
Inside Dimensions: 70″ L x 34″ W x 45″ H /
178 cm L x 91 cm W x 114 cm H
Total Weight 78 lbs. / 35 kg.
7′ Pen AGRI-7137WA
Outside Dimensions: 96″ L x 36″ W x 45″ H /
244 cm L x 91 cm W x 114 cm H
Inside Dimensions: 82″ L x 34″ W x 45″ H /
208 cm L x 91 cm W x 114 cm H
Total Weight 82 lbs. / 37 kg.
5′ Pen AGRI-7145S
Outside Dimensions: 72″ L x 48″ W x 45″ H /
183 cm L x 122 cm W x 114 cm H
Inside Dimensions 58″ L x 46″ W x 45″ H /
147 cm L 122 cm W x 114 cm H
Total Weight 151 lbs. / 69 kg.
6′ Pen AGRI-7146S
Outside Dimensions: 84″ L x 48″ W x 45″ H /
213 cm L x 122 cm W x 114 cm H
Inside Dimensions 70″ L x 46″ W x 45″ H /
178 cm L 122 cm W x 114 cm H
Total Weight 165 lbs. / 75 kg.
7′ Pen AGRI-7147S
Outside Dimensions: 96″ L x 48″ W x 45″ H /
244 cm L x 122 cm W x 114 cm H
Inside Dimensions 82″ L x 46″ W x 45″ H /
208 cm L 122 cm W x 114 cm H
Total Weight 173 lbs. / 79 kg.
5′ Pen AGRI-7145A
Outside Dimensions: 72″ L x 48″ W x 45″ H /
183 cm L x 122 cm W x 114 cm H
Inside Dimensions 58″ L x 46″ W x 45″ H /
147 cm L 122 cm W x 114 cm H
Total Weight 119 lbs. / 54 kg.
6′ Pen AGRI-7146A
Outside Dimensions: 84″ L x 48″ W x 45″ H /
213 cm L x 122 cm W x 114 cm H
Inside Dimensions 70″ L x 46″ W x 45″ H /
178 cm L 122 cm W x 114 cm H
Total Weight 126 lbs. / 57 kg.
7′ Pen AGRI-7147A
Outside Dimensions: 96″ L x 48″ W x 45″ H /
244 cm L x 122 cm W x 114 cm H
Inside Dimensions 82″ L x 46″ W x 45″ H /
208 cm L 122 cm W x 114 cm H
Total Weight 130 lbs. / 59 kg.
5′ Pen AGRI-7145WS
Outside Dimensions: 72″ L x 48″ W x 45″ H /
183 cm L x 122 cm W x 114 cm H
Inside Dimensions 58″ L x 46″ W x 45″ H /
147 cm L 122 cm W x 114 cm H
Total Weight 111 lbs. / 50 kg
6′ Pen AGRI-7146WS
Outside Dimensions: 84″ L x 48″ W x 45″ H /
213 cm L x 122 cm W x 114 cm H
Inside Dimensions 70″ L x 46″ W x 45″ H /
178 cm L 122 cm W x 114 cm H
Total Weight 125 lbs. / 57 kg.
7′ Pen AGRI-7147WS
Outside Dimensions: 96″ L x 48″ W x 45″ H /
244 cm L x 122 cm W x 114 cm H
Inside Dimensions 82″ L x 46″ W x 45″ H /
208 cm L 122 cm W x 114 cm H
Total Weight 133 lbs. / 60 kg.
5′ Pen AGRI-7145WA
Outside Dimensions: 72″ L x 48″ W x 45″ H /
183 cm L x 122 cm W x 114 cm H
Inside Dimensions 58″ L x 46″ W x 45″ H /
147 cm L 122 cm W x 114 cm H
Total Weight 79 lbs. / 36 kg
6′ Pen AGRI-7146WA
Outside Dimensions: 84″ L x 48″ W x 45″ H /
213 cm L x 122 cm W x 114 cm H
Inside Dimensions 70″ L x 46″ W x 45″ H /
178 cm L 122 cm W x 114 cm H
Total Weight 86 lbs. / 39 kg.
7′ Pen AGRI-7147WA
Outside Dimensions: 96″ L x 48″ W x 45″ H /
244 cm L x 122 cm W x 114 cm H
Inside Dimensions 82″ L x 46″ W x 45″ H /
208 cm L 122 cm W x 114 cm H
Total Weight 90 lbs. / 41 kg.
Standard Features:

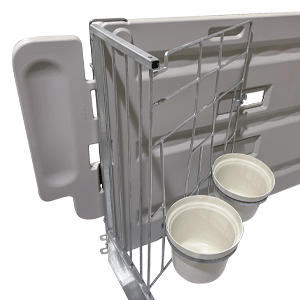

Bi-swing front door for easy access

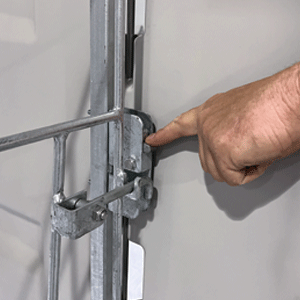

Slam Latch keeps front gate secure
Simply lift up EZ Glide Rod and hinge open rear gate for easy access
